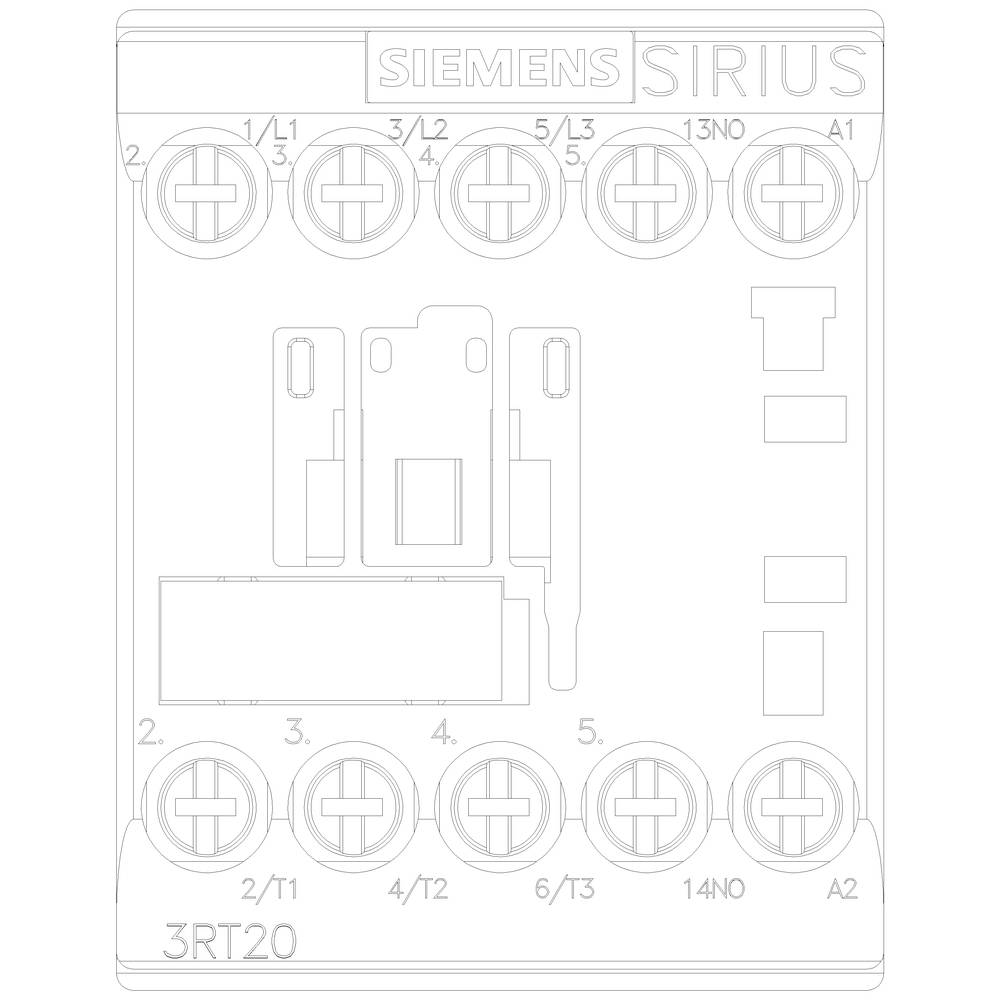

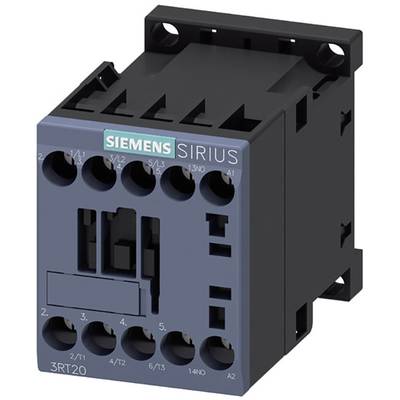

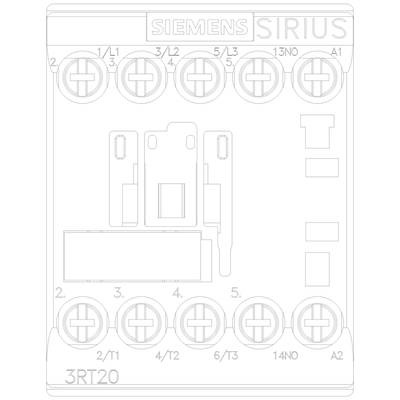

Siemens 3RT2015-1AP01 Contacteur 3 NO (T) 3 kW 230 V/AC 7 A avec contact auxiliaire 1 pc(s)
EAN :
N° réf. fabricant :
Code produit :
Type de produit
Contacteur
Nombre de pôles
3 pôles
Tension nominale
230 V/AC
Courant de charge
7 A
Puissance
3 kW
Fiche technique (PDF)
11 pièce(s)
Vos besoins vont au-delà?
Nombre
Total (CHF 38.81 / pièce(s))
CHF
Caractéristiques techniques
- Poids : 230 g
- Puissance dissipée : 0,4 W
- Type de produit
Contacteur
- Type
3RT2015-1AP01
- Dimensions
S00
- Nombre de pôles
3 pôles

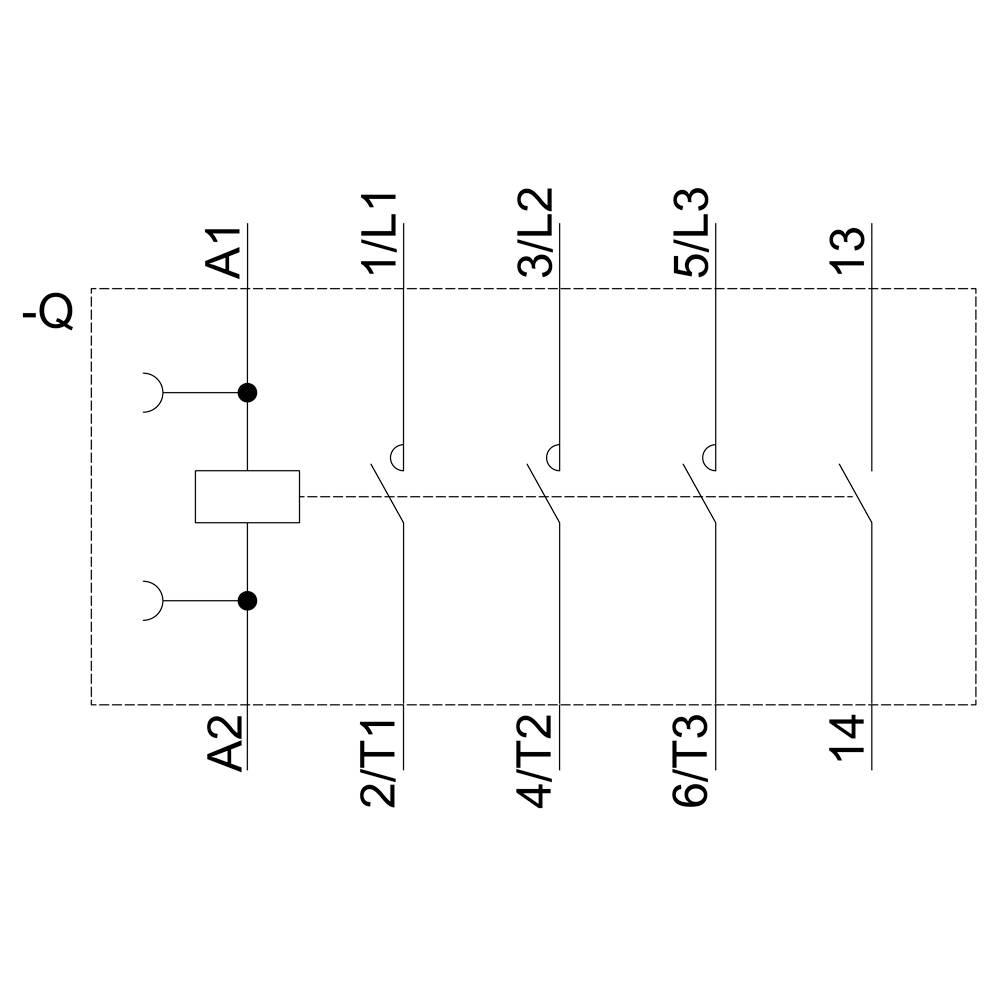

- Type de contact
3 NO (T)
- Type de contact auxiliaire
1 NO (T)
- Tension nominale
230 V/AC
- Tension de contact (max.)
400 V/AC
- Courant de charge
7 A
3 kW
- Spécificités
avec contact auxiliaire
- Type de montage
pour profilé
- Connexion
borne à vis
- Durée de vie mécanique
3.0E7
IP20
- Température min.
-25 °C
- Température max.
+60 °C

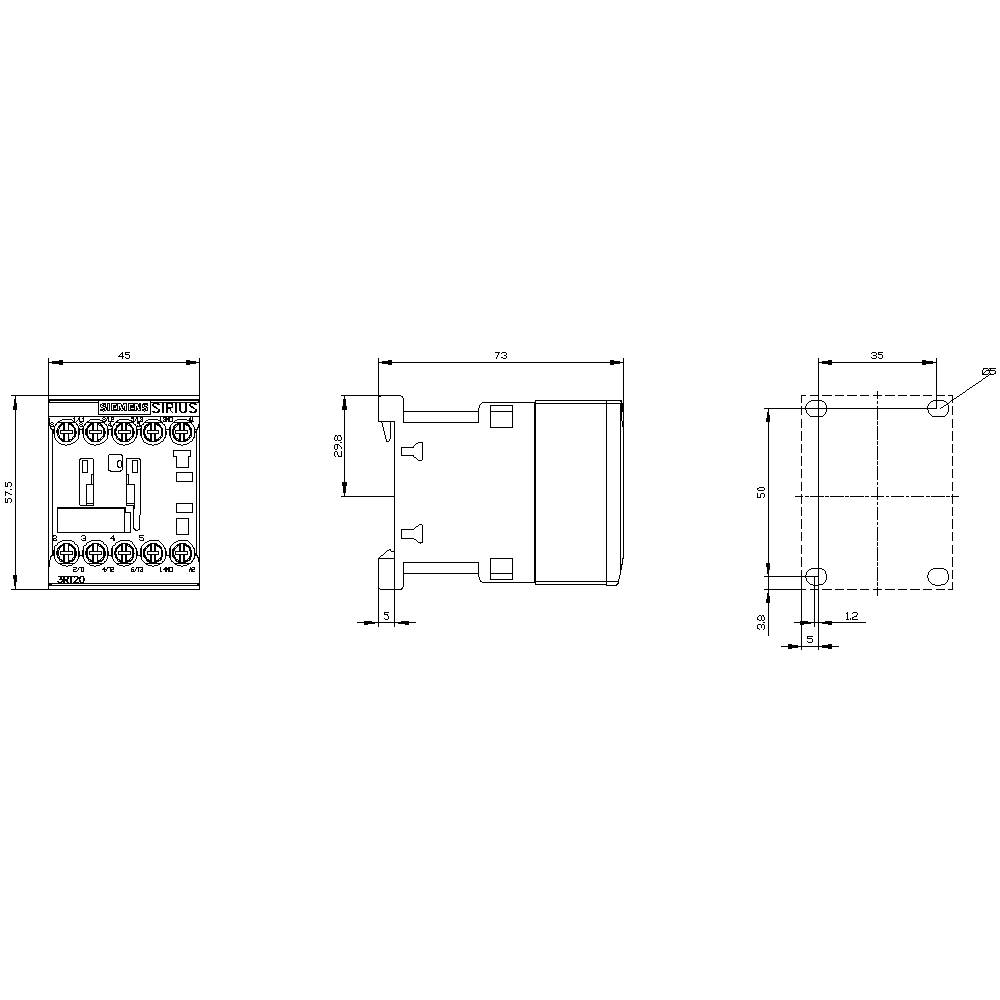

- Largeur
45 mm
- Hauteur
58 mm
- Profondeur
73 mm
- Dim.
(l x H x P) 45 x 58 x 73 mm
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
- Poids
0.23
VRAI
3 kW
3
1
7 A
18 A
230-230 V
230-230 V
Screw connection
AC
6.5 A
3 kW
2.206
Documents & téléchargements
Fiche technique
Fiche technique 1431023 Siemens 3RT2015-1AP01 Contacteur 3 NO (T) 3 kW 230 V/AC 7 A avec contact auxiliaire 1 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1431023 Siemens 3RT2015-1AP01 Contacteur 3 NO (T) 3 kW 230 V/AC 7 A avec contact auxiliaire 1 pc(s)
Description
Power contactor, AC-3 7 A, 3 kW / 400 V 1 NO, 230 V AC, 50 / 60 Hz 3-pole, Size S00 screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

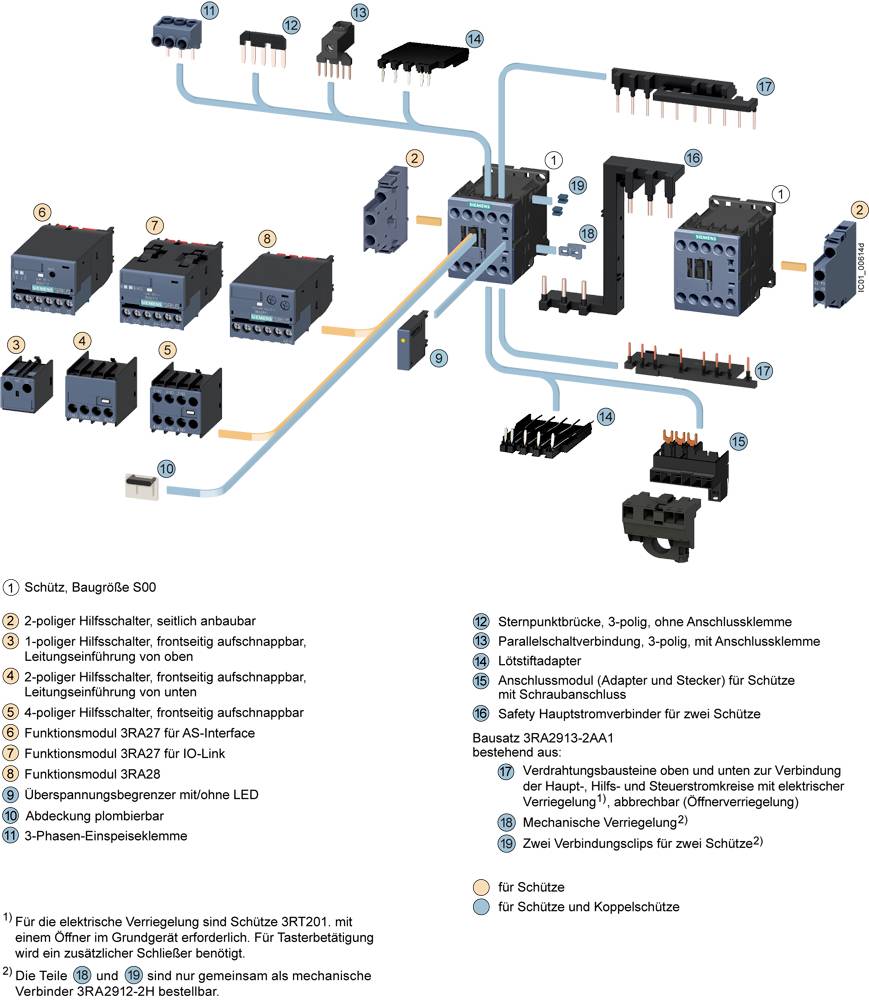

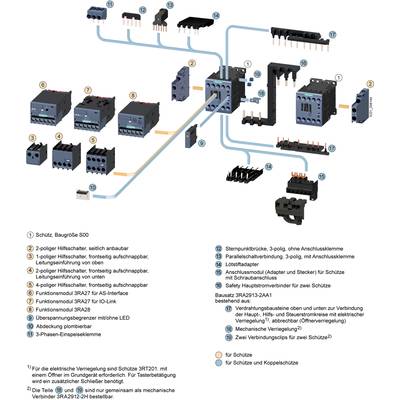

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
