Siemens 3RF2340-1AA22 Contacteur à semi-conducteurs à commutation au zéro de tension 1 NO (T) 40 A 1 pc(s)
EAN :
N° réf. fabricant :
Code produit :
Type de produit
Contacteur à semi-conducteurs
Nombre de pôles
1 pôle
Courant de charge
40 A
Connexion
borne à vis
Type
3RF2340-1AA22
Fiche technique (PDF)
Nombre
Total (CHF 83.21 / pièce(s))
CHF 83.21
excl. TVA
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Type de produit
Contacteur à semi-conducteurs
- Type
3RF2340-1AA22
- Nombre de pôles
1 pôle
- Type de commutation
à commutation au zéro de tension

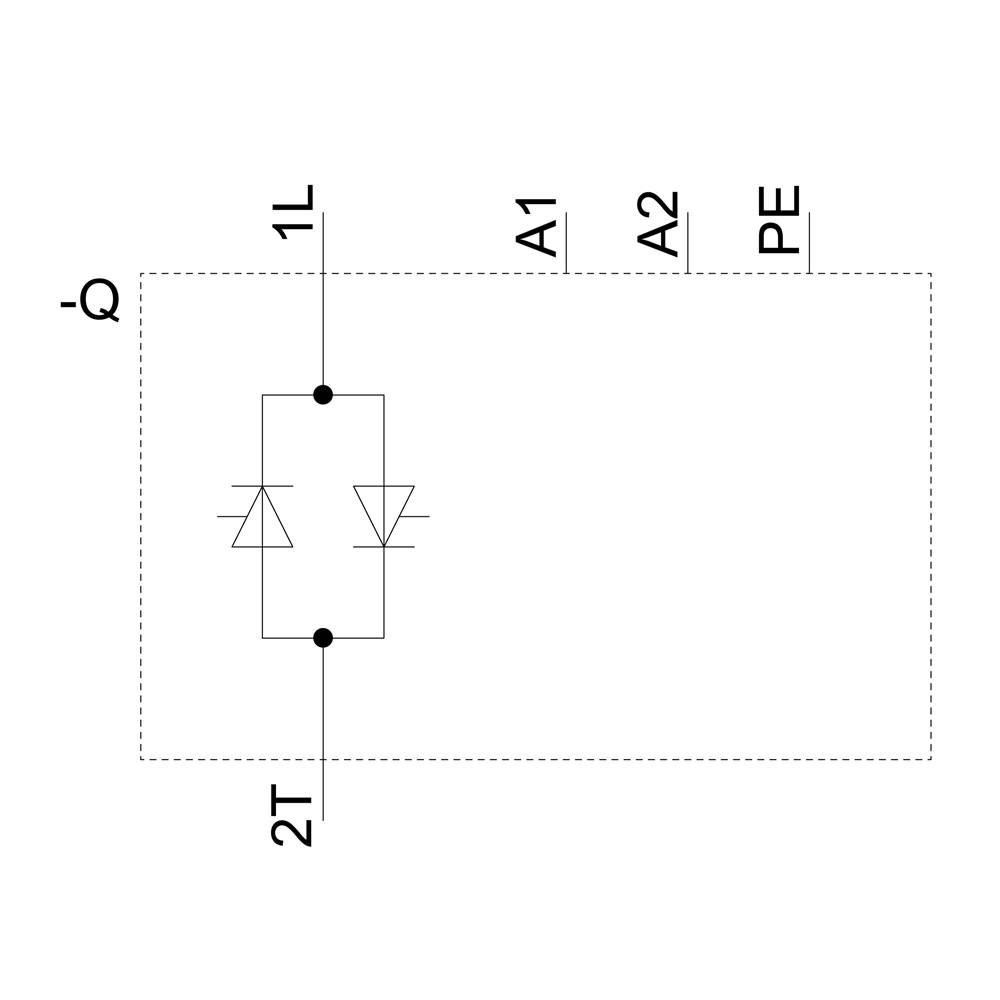

- Type de contact
1 NO (T)
- Tension de commande (min.)
110 V/AC
- Tension de commande (max.)
230 V/AC
- Gamme de tension de commande
110 - 230 V/AC
- Tension de contact (min.)
24 V/AC
- Tension de contact (max.)
230 V/AC
- Courant de charge
40 A
- Type de montage
pour profilé
- Connexion
borne à vis
- Temps de réponse
40 ms
IP20
- Température min.
-25 °C
- Température max.
+60 °C

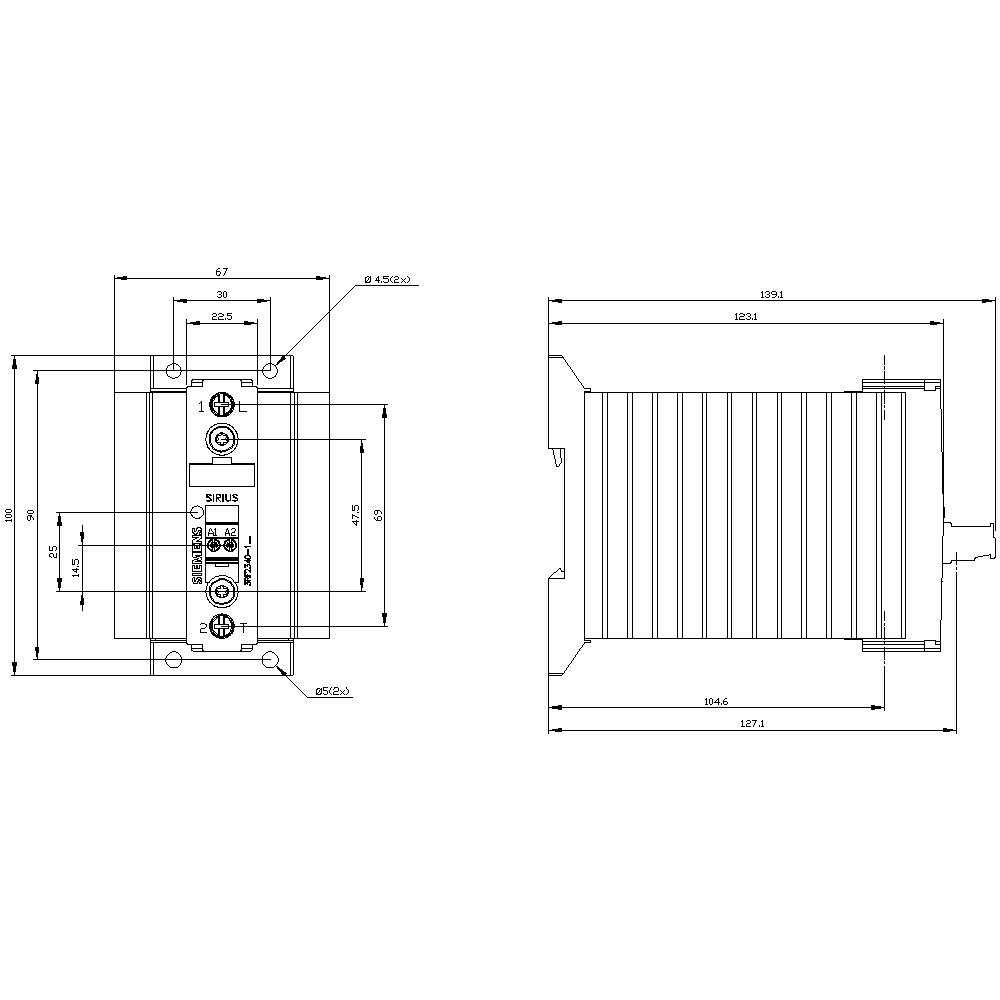

- Largeur
67.5 mm
- Hauteur
100 mm
- Profondeur
142 mm
- Dim.
(l x H x P) 67.5 x 100 x 142 mm
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
1
VRAI
40 A
AC
40 A
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 1431009 Siemens 3RF2340-1AA22 Contacteur à semi-conducteurs à commutation au zéro de tension 1 NO (T) 40 A 1 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1431009 Siemens 3RF2340-1AA22 Contacteur à semi-conducteurs à commutation au zéro de tension 1 NO (T) 40 A 1 pc(s)
Description
Solid-state contactor 1-phase 3RF2 AC 51 / 40 A / 40 °C 24-230 V / 110-230 V AC screw terminal solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.

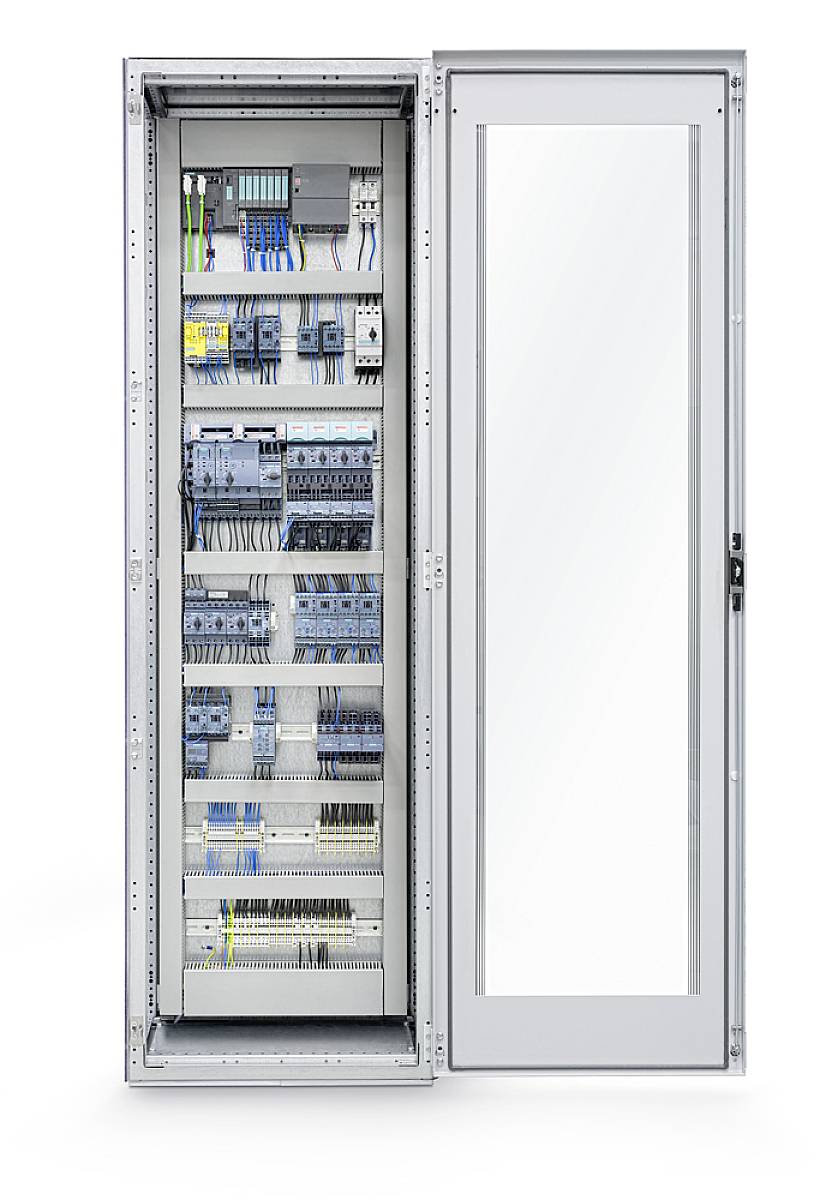

The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
