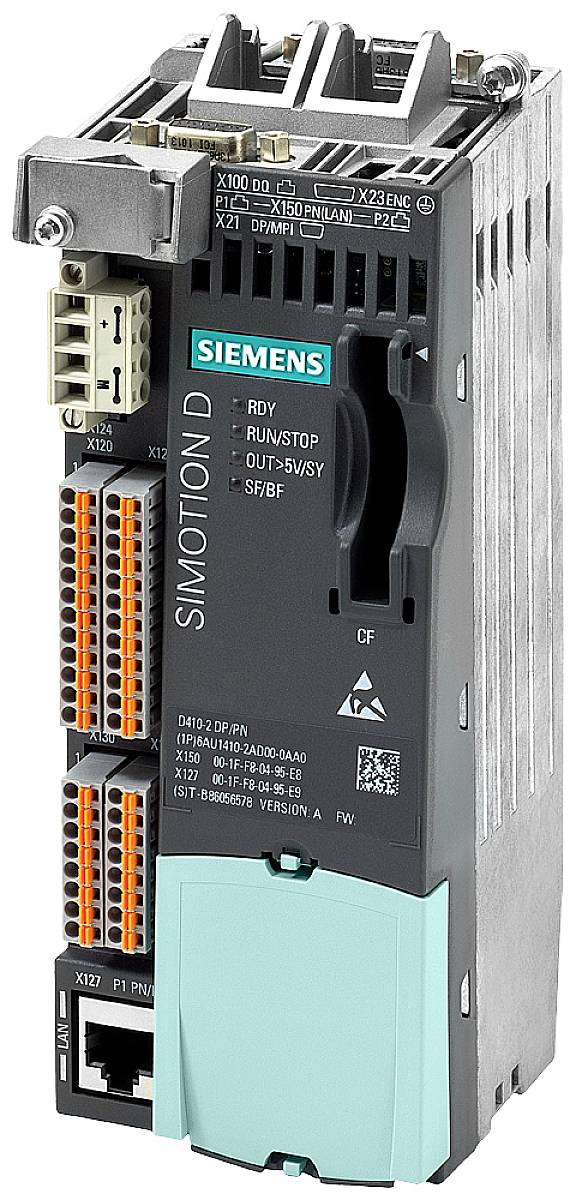

Siemens 6AU1410-2AD00-0AA0 6AU14102AD000AA0 Module de commande

SIMOTION Drive-based Control Unit D410-2 DP/PN, programmable single-axis motion controller with multi-axis option, interfaces: 5 DI, 8 DI/DO, 3 F-DI, 1 F-DO, 1 AI, 1 encoder, 1 DRIVE-CLiQ, 1 PROFIBUS, 2 PROFINET ports, 1 ethernet Note: requires at least SCOUT/firmware V4.3 SP1 HF3 Compact, flexibly scalable, cost-efficient and responsive: In SIMOTIOND of the SIMOTION family, the PLC, technology and Motion Control functionality is integrated directly in the closed-loop control module of the SINAMICSS120 drive system. SIMOTION D is ideally suited to complex applications implemented in confined spaces. By combining the controller and the drive in one system, SIMOTION D requires little space in the control cabinet. The system is thus optimally suited to distributed or modular automation solutions - especially when it comes to complex machines that place high time-critical demands on axis couplings. SIMOTION D is the ideal solution for systems in which large axis quantity structures and minimum cycle times are required for high machine cycles rates and optimum product quality through deterministic, reproducible machine behavior. Cost-effective yet powerful: The SIMOTION D410-2 single-axis system with multi-axis option (blocksize format for max. 8 axes) is especially suitable in environments where maximum flexibility and compact design are essential.
