Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Bouton-poussoir lumineux à rappel actionneur plat, collerette plastique pous
Fiche technique (PDF)
EAN :
N° réf. fabricant :
Code produit :
16 pièce(s)
Nombre
Total (CHF 10.95 / pièce(s))
CHF 10.95
Prix TVA incl.
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques

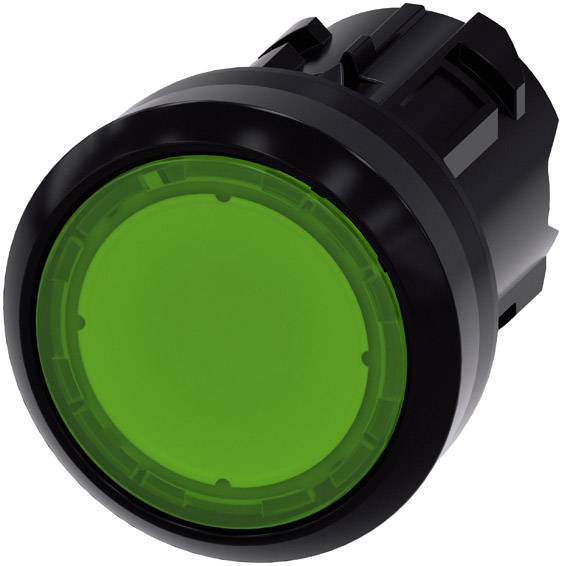

- Bouton-poussoir lumineux, 22 mm, rond, plastique, vert, bouton-poussoir, bouton-poussoir plat
- Type d'emballage
Single
- Type de produit
Bouton-poussoir lumineux à rappel
- Spécificités
actionneur plat
collerette plastique
- Type d'éclairage
éclairage de surface
- Type d'actionnement
poussoir en plastique
- Couleur d'éclairage
vert
- Couleur
vert
- Couleur boîtier
vert
- Motif d'impression
sans
- Connexion
élément de contact externe
élément LED externe
- Forme
rond
- Découpe façade
22 mm mm
- Fonctions
à rappel
- Durée de vie mécanique
3000000
- Ø de montage
22 mm
IP66
IP67
IP69K
- Température min.
-25 °C
- Température max.
+70 °C

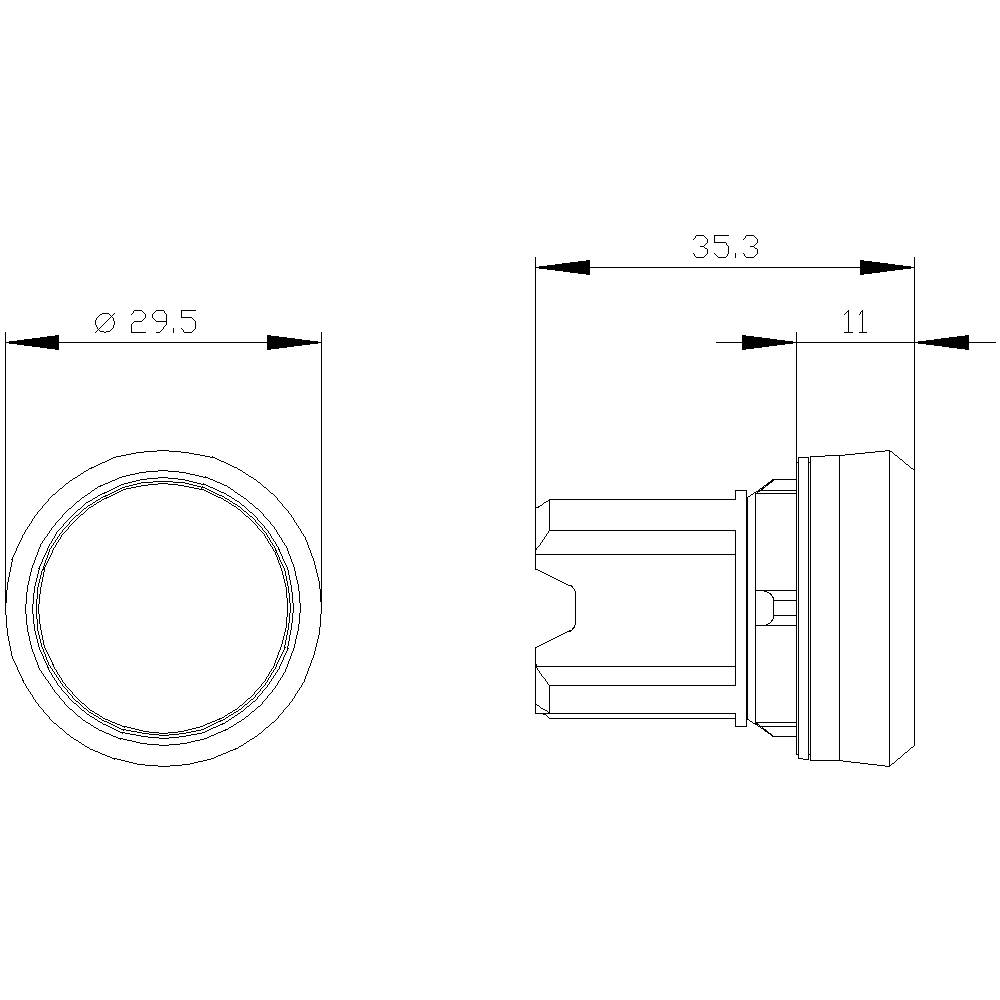

- Largeur
29.5 mm
- Hauteur
29.5 mm
- Diamètre
22 mm
- Contenu
1 pc(s)
- Dim.
(Ø x H) 22 mm x 29.5 mm
- Conforme à la norme RoHS
oui
- Poids
18 g
- Type
3SU1001-0AB40-0AA0
22.3 mm
Green
VRAI
1
FAUX
FAUX
Black
Other
FAUX
Plastic
VRAI
Round
FAUX
Other
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Bouton-poussoir lumineux à rappel actionneur plat, collerette plastique pous
Fiche technique 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Bouton-poussoir lumineux à rappel actionneur plat, collerette plastique pous
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Bouton-poussoir lumineux à rappel actionneur plat, collerette plastique pous
Information
Information 1379571 Siemens 3SU10010AB400AA0 3SU1001-0AB40-0AA0 Bouton-poussoir lumineux à rappel actionneur plat, collerette plastique pous
Description
Illuminated pushbutton, 22 mm, round, plastic, green, pushbutton, flat momentary contact type Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
