Disjoncteur Siemens 3RV2031-4JA10 Plage de réglage (courant): 54 - 65 A Tension de contact (max.): 690 V/AC (l x H x P)
EAN :
N° réf. fabricant :
Code produit :
Type de produit
Disjoncteur
Valeur du courant d'appel (max.)
65 A
Connexion
raccord à vis
Type
3RV2031-4JA10
Dimensions
S2
Fiche technique (PDF)
Nombre
Total (CHF 264.52 / pièce(s))
CHF 264.52
excl. TVA
Livraison gratuite
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Disjoncteur taille S2 pour la protection moteur, déclencheur CLASS 10 A 54...65 A déclencheur N 845 A raccordement vissé Pouvoir de coupure standard
- Type de produit
Disjoncteur
- Type
3RV2031-4JA10
- Dimensions
S2
- Plage de réglage du courant (min.)
54 A
- Valeur du courant d'appel (max.)
65 A
- Plage de réglage (courant)
54 - 65 A
- Nombre de pôles
3 pôles
- Tension de contact (max.)
690 V/AC
- Type de montage
pour profilé
- Température min.
-20 °C
- Température max.
+60 °C
- Connexion
raccord à vis
IP20
- Profondeur
149 mm
- Largeur
55 mm
- Hauteur
140 mm

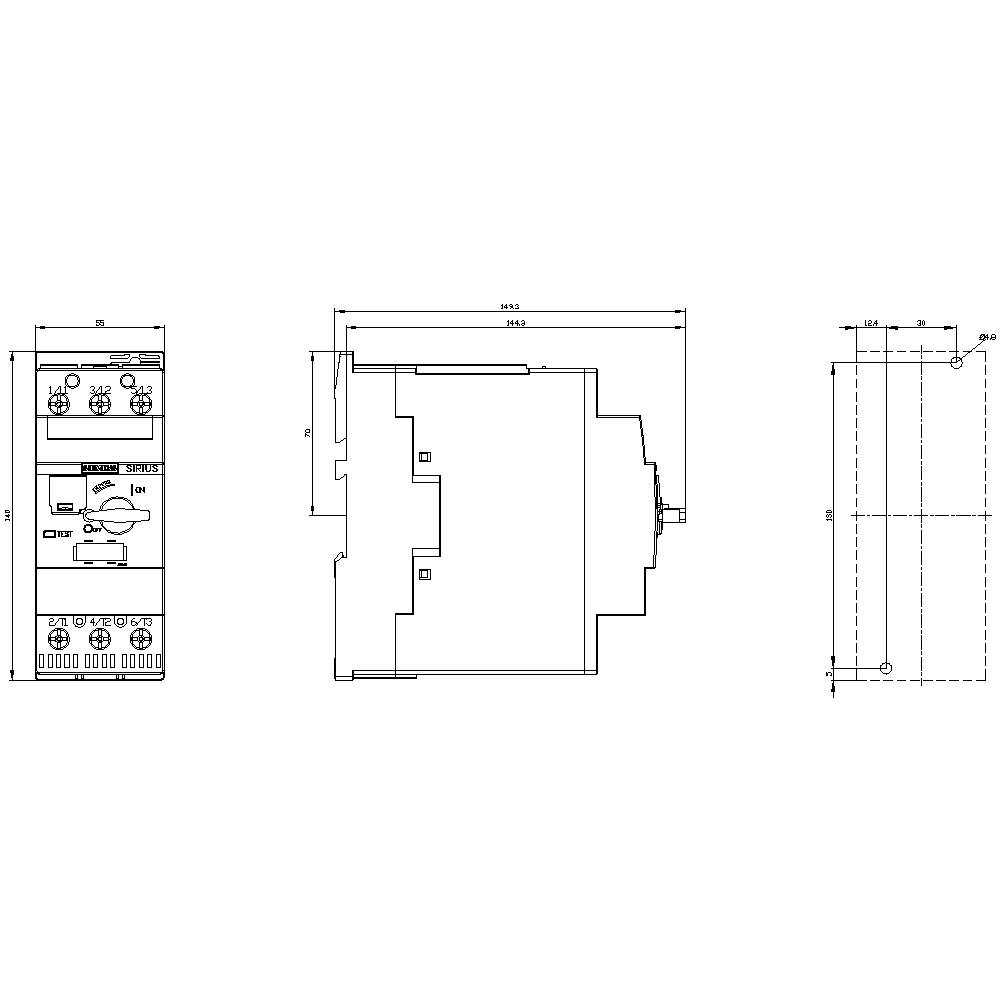

- Dim.
(l x H x P) 55 x 140 x 149 mm
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
55
140 mm
149 mm
30 kW
FAUX
65 A
FAUX
3
690-690 V
54-65 A
IP20
VRAI
Screw connection
Turn button
Magnetic
18.5 kW
65 kA
VRAI
Built-in device fixed built-in technique
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 1430975 Disjoncteur Siemens 3RV2031-4JA10 Plage de réglage (courant): 54 - 65 A Tension de contact (max.): 690 V/AC (l x H x P)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1430975 Disjoncteur Siemens 3RV2031-4JA10 Plage de réglage (courant): 54 - 65 A Tension de contact (max.): 690 V/AC (l x H x P)
Description
Circuit breaker size S2 for motor protection, CLASS 10 A-release 54...65 A N-release 845 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
