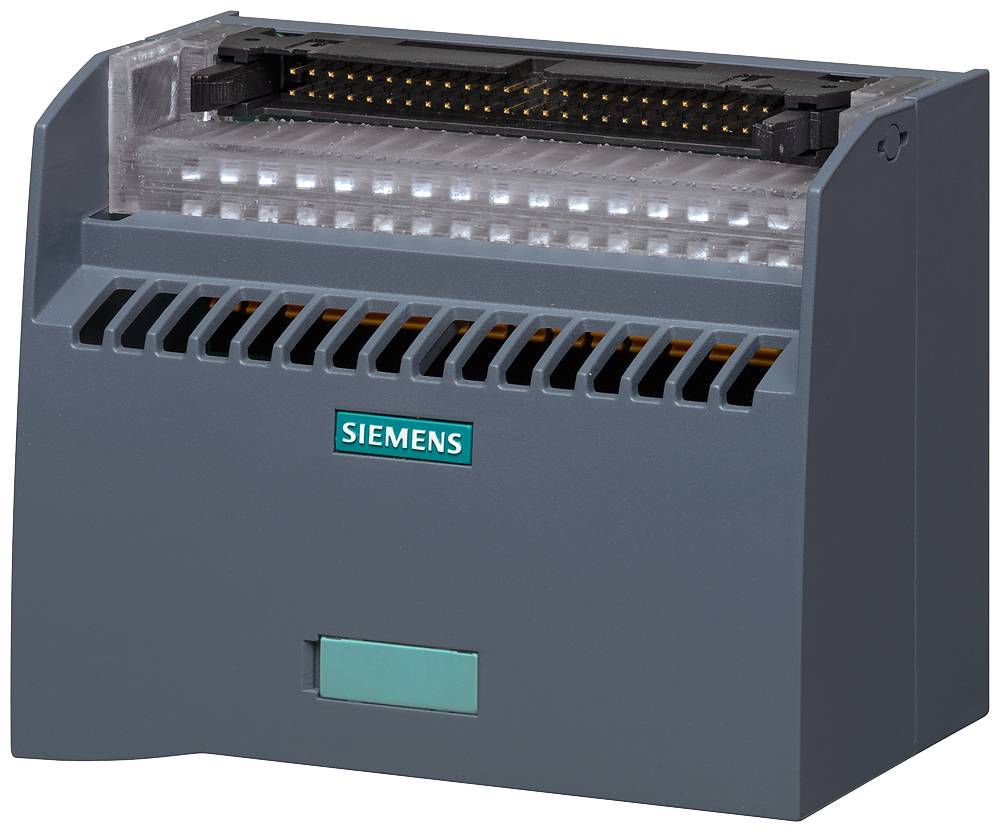

Siemens 6ES79242AM200BC0 6ES7924-2AM20-0BC0 API - Module de raccordement
EAN :
N° réf. fabricant :
Code produit :
Fiche technique (PDF)
83 pièce(s)
Nombre
Total (CHF 64.71 / pièce(s))
CHF 64.71
excl. TVA
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Type de produit
API - Module de raccordement
- Type
6ES7924-2AM20-0BC0
- Référence fabricant
6ES79242AM200BC0
- Contenu
1 pc(s)
DIN rail (top hat rail) 35 mm
Grey
24 V
76 m
V1
100 mm
60 mm
FAUX
Plug-in connection
Insulation piercing connection
FAUX
FAUX
VRAI
PNP
1
1
FAUX
FAUX
FAUX
Other
1 A
FAUX
- UKCA
non pertinent
Documents & téléchargements
Fiche technique
Fiche technique 2873197 Siemens 6ES79242AM200BC0 6ES7924-2AM20-0BC0 API - Module de raccordement
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 2873197 Siemens 6ES79242AM200BC0 6ES7924-2AM20-0BC0 API - Module de raccordement
Description
Connection module TP1 M signal 32 channels a. 4x2 terminals f. Potential supply Type: Push-in terminal with LED, VPE = 1 unit 50 pole IDC connector f. cable The connection module TP1 M signal for a 1-wire connection with 32 channels and potential connection with push-in terminals with LED for signaling forms the interface between the connection lines of the I/O brought in from the field and the SIMATIC S7. This is mounted on the DIN rail and, thanks to its functionality with push-in terminals, it is precisely adapted to the task at hand. This connection module is part of the fully modular SIMATIC TOP connect for the fastest and safest system cabling. In addition to a low wiring effort, sources of error during cabling can be significantly reduced. Sensors and actuators from the I/O are connected to the SIMATIC TOP connect terminal modules and are connected with the SIMATIC S7-1500 via the connecting cable and front connector module.
