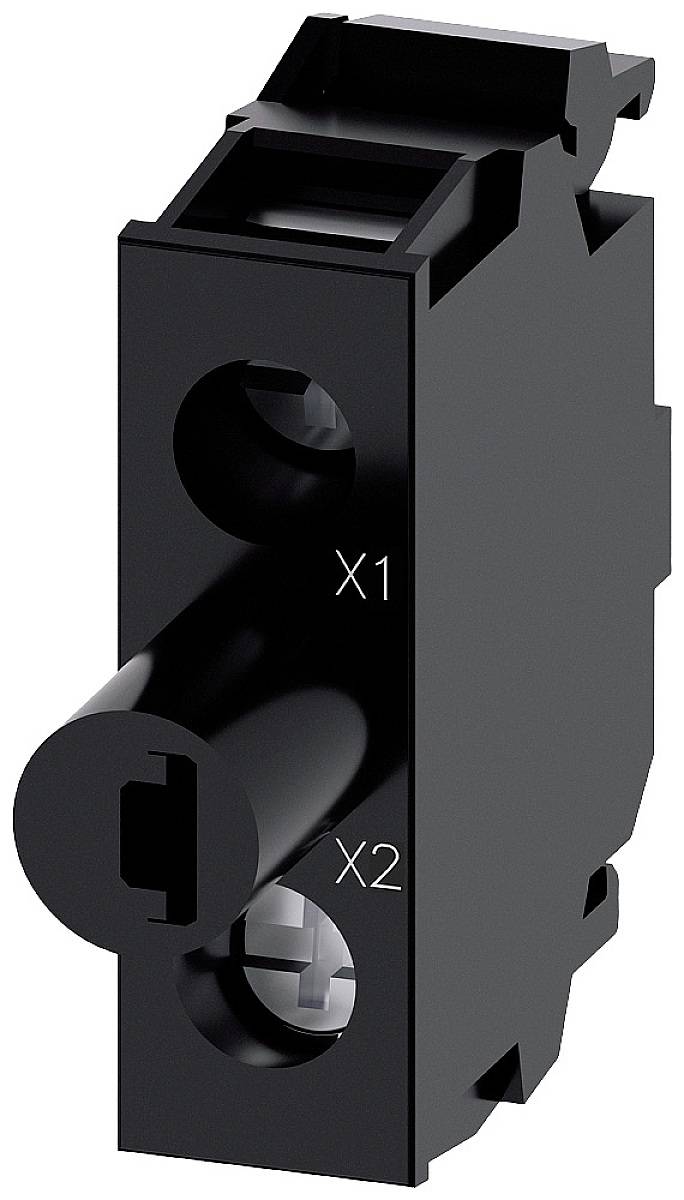

Siemens 3SU1401-2BB30-1AA0 Module LED pour montage au sol jaune 24 V DC/AC 5 pc(s)
Fiche technique (PDF)
EAN :
N° réf. fabricant :
Code produit :
2 Set(s)
Nombre (taille du paquet 5 pc(s))
Total (CHF 7.59 / pièce(s))
CHF 55.95
-32 %
CHF 37.95
Prix TVA incl.
Plus que 2 Set(s) en stock !
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Type d'ampoule : LED
- Composant du produit / diode : oui
- Composant du produit / ampoule : oui
- Résistance aux vibrations : 10... 500 Hz : 5g
- Couple de serrage / pour raccordement à vis / minimum : 0,8 Nm
- Couple de serrage / pour raccordement à vis / max. : 0,9 Nm
- Type de section de conducteur connectable / pour les câbles AWG : 2x (18... 14)
- Type de section de conducteur connectable / à un fil / avec finition de fil : 2x (0,5... 0,75 mm²)
- Type de section de conducteur connectable / à un fil / sans finition de fil : 2x (1,0... 1,5 mm²)
- Type de section de conducteur connectable / à fils fins / avec finition de fil : 2x (0,5... 1,5 mm²)
- Type de section de conducteur connectable / à fils fins / sans finition de fil : 2x (1,0... 1,5 mm²)
- Courant d'appel maximal : 2 A.
- Tension d'isolement : 320 V
- Intensité lumineuse minimale : 900 mcd
- Intensité lumineuse maximale : 1400 mcd
- Degré de pollution : 3
- Type de produit
Module LED
- Spécificités
pour montage au sol
- Connexion
raccord à vis
- Modèle
avec LED intégrée
- Couleur d'éclairage
jaune
- Tension de commutation
24 V DC/AC
- Courant de commutation (max.)
25 mA
IP20
IP40
- Résistance diélectrique
4 kV
- Température min.
-25 °C
- Température max.
+70 °C

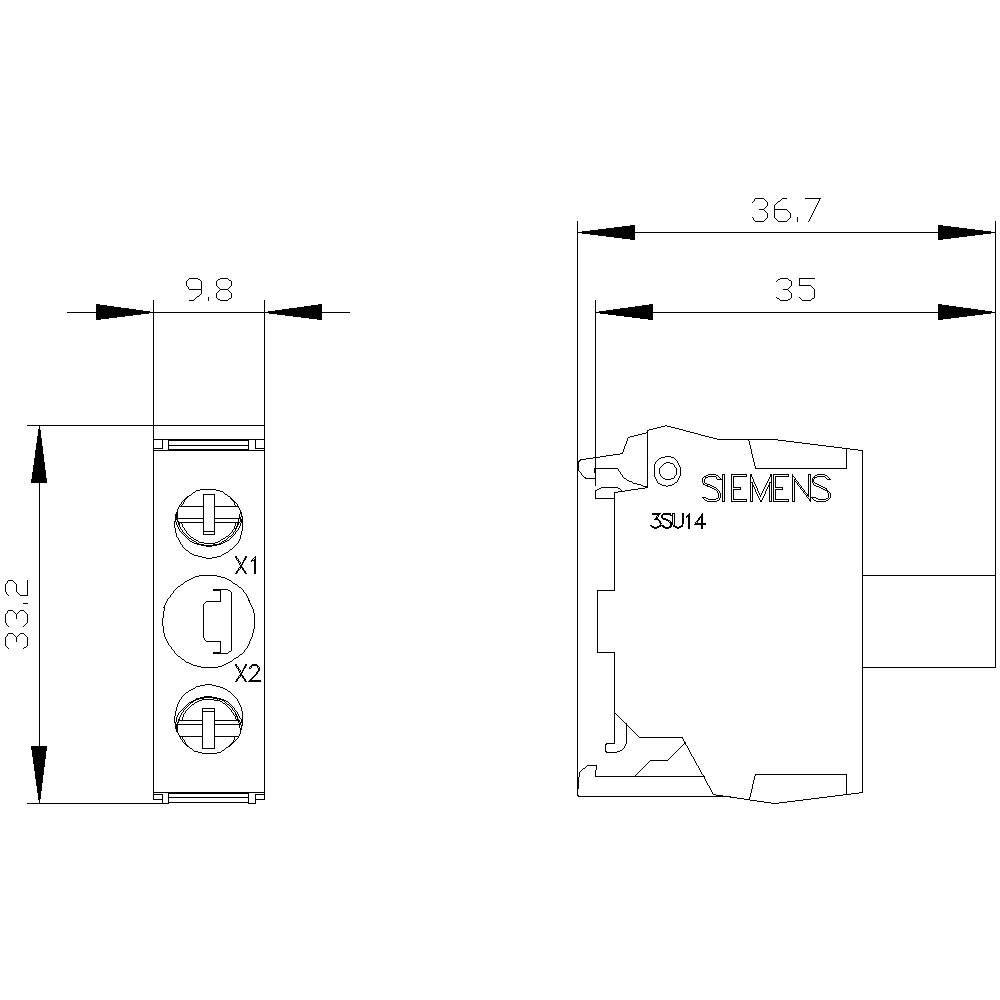

- Largeur
9.8 mm
- Hauteur
33.2 mm
- Durée de vie électrique
100 000
- Type de montage
fixation au sol
- Contenu
5 pc(s)
- Dim.
(l x H x P) 9.8 x 33.2 x 29.4 mm
- Conforme à la norme RoHS
oui
- Profondeur
29.4 mm
- Type
3SU1401-2BB30-1AA0
- Ampoule incluse
oui
None
FAUX
FAUX
VRAI
Yellow
LED
VRAI
Screw connection
AC/DC
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 2262283 Siemens 3SU1401-2BB30-1AA0 Module LED pour montage au sol jaune 24 V DC/AC 5 pc(s)
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 2262283 Siemens 3SU1401-2BB30-1AA0 Module LED pour montage au sol jaune 24 V DC/AC 5 pc(s)
Description
LED module with integrated LED 24 V AC/DC, yellow, screw terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
