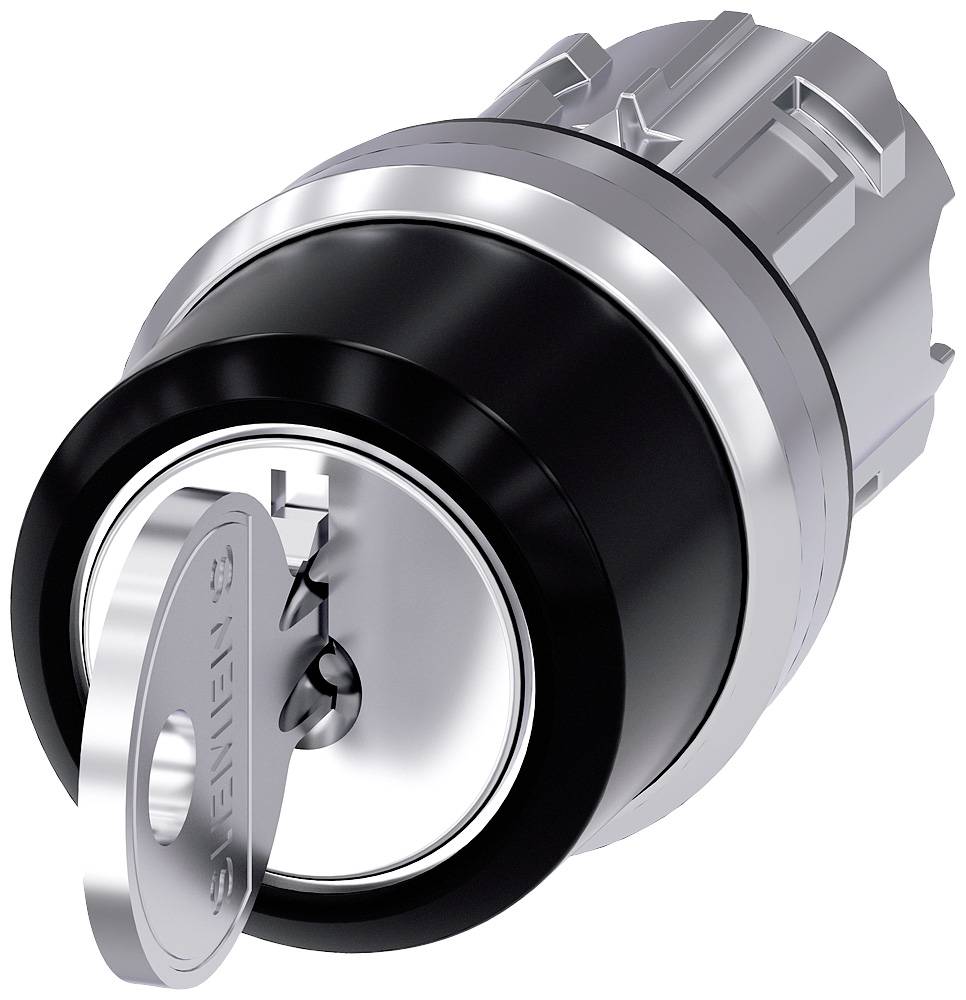

Siemens 3SU10504BL110AA0 3SU1050-4BL11-0AA0 Commutateur à clé collerette métal, finition brillante clé noir 2 x 45 ° déc
Fiche technique (PDF)
EAN :
N° réf. fabricant :
Code produit :
Nombre
Total (CHF 33.95 / pièce(s))
CHF 33.95
Prix TVA incl.
Livraison gratuite avec
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Interrupteur à clé RONIS, 22 mm, rond, métal, brillant, n° de fermeture SB30, avec 2 clés, 3 positions de commutation I-O-II, à enclenchement, angle de commutation 2x45°, 10:30h/12h/13:30h, retrait de clé I+O+II, fermetures spéciales possibles : SB31, 421, 455
- Type de produit
Commutateur à clé
- Spécificités
collerette métal
finition brillante
- Type d'éclairage
sans
- Type d'actionnement
clé
- Couleur
noir
- Couleur boîtier
noir
- Motif d'impression
sans
- Connexion
élément de contact externe
- Position de retrait de la clé
On/Off/On
- Mode de décrochage
décrochage par clef
- Forme
rond
- Fonctions
à accrochage
- Ø de montage
22 mm
- Modèle
Clé RONIS, N° de serrure SB30
IP67
- Température min.
-25 °C
- Température max.
+70 °C
- Angle de commutation
2 x 45 °
- Contenu
1 pc(s)
- Conforme à la norme RoHS
oui
- Poids
0.0836 kg
- Type
3SU1050-4BL11-0AA0
22.3 mm
3
FAUX
FAUX
Other
IP67/IP69K

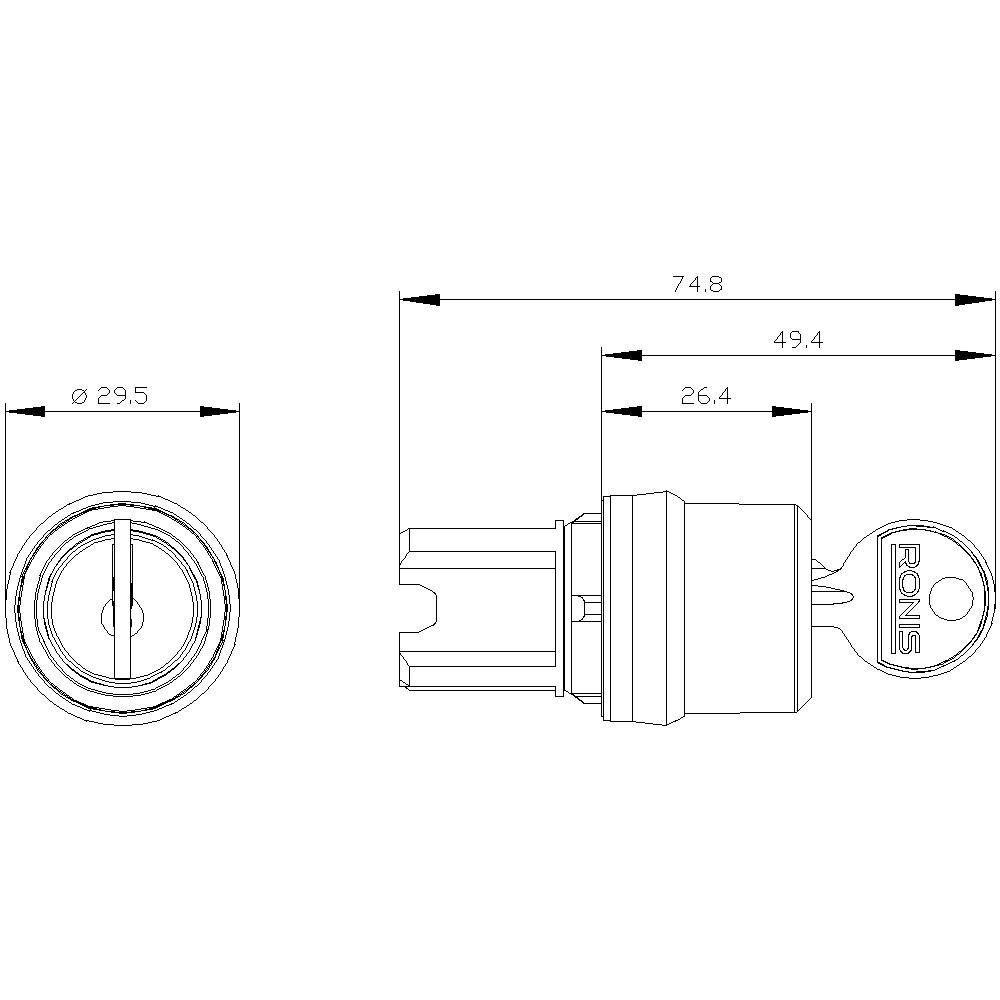

29.5 mm
49.4 mm
Metal
VRAI
Rectangular
Other
Silver
VRAI
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 1379451 Siemens 3SU10504BL110AA0 3SU1050-4BL11-0AA0 Commutateur à clé collerette métal, finition brillante clé noir 2 x 45 ° déc
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 1379451 Siemens 3SU10504BL110AA0 3SU1050-4BL11-0AA0 Commutateur à clé collerette métal, finition brillante clé noir 2 x 45 ° déc
Information
Information 1379451 Siemens 3SU10504BL110AA0 3SU1050-4BL11-0AA0 Commutateur à clé collerette métal, finition brillante clé noir 2 x 45 ° déc
Description
RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal I+O+II, possible special locks: SB31, 421, 455 Key-operated switches SIRIUS ACT for meeting higher demands for access security.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various locking systems (Siemens, BKS, RONIS, OMR, IKON), 2/3 switch positions, latching/momentary-contact operation, various key removal positions.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Contenu de la livraison
- Avec 2 clés
