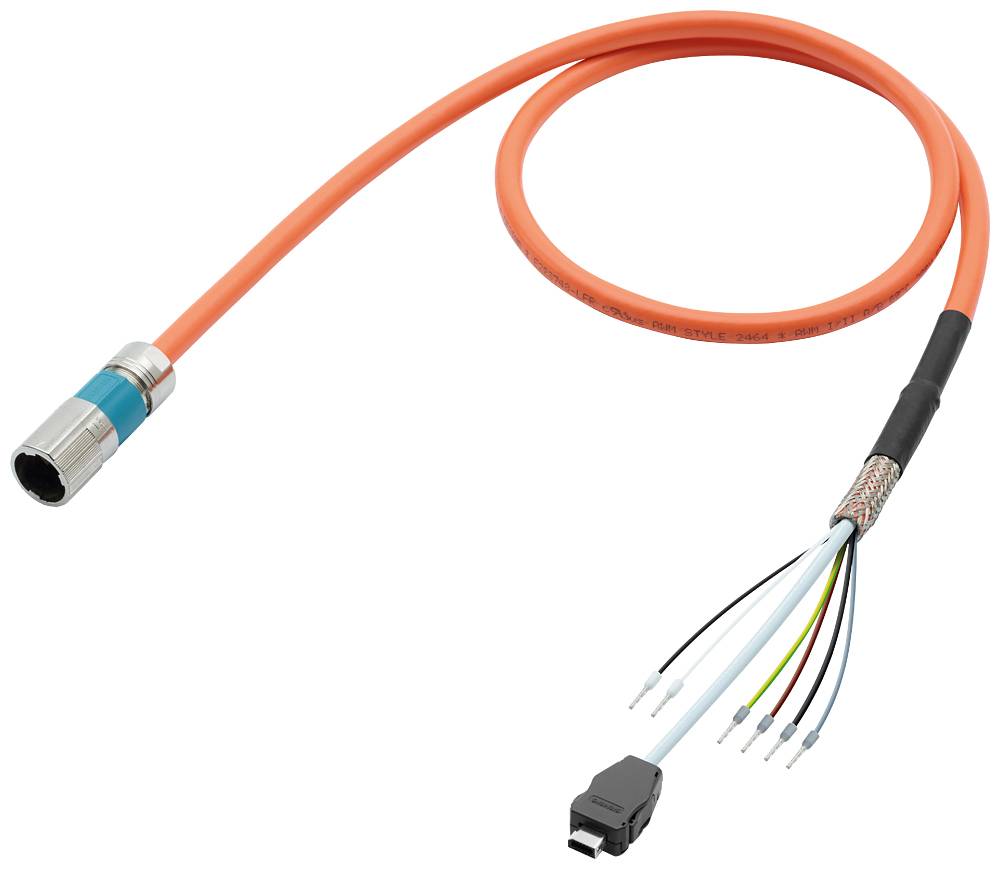

Siemens 6FX50028QN041CA0 M12 mâle 1 pc(s) Piece
EAN :
N° réf. fabricant :
Code produit :
Forme
mâle
Coté de raccordement B
Connecteur mâle IX
Type de filetage côté du raccordement
M12
Type d'emballage
Piece
Type
6FX5002-8QN04-1CA0
Fiche technique (PDF)
Nombre
Total (CHF 236.77 / pièce(s))
CHF 236.77
excl. TVA
Livraison gratuite
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Type d'emballage
Piece
- Type
6FX5002-8QN04-1CA0
- Forme
mâle
- Coté de raccordement B
Connecteur mâle IX
- Section de raccordement (max.)
0.38 mm²
- Ø extérieur
9.7 mm
- Connexion
connecteur mâle M12
- Type de filetage côté du raccordement
M12
- Type de filetage connexion des câbles et montage
M12
- Section max.
0.38 mm²
- Section (min.)
0.2 mm²
- Type de fermeture
Speedcon
- Référence fabricant
6FX50028QN041CA0
- Contenu
1 pc(s)
- Diamètre de câble
9.7 mm
- Ø câble max.
9.7 mm
- Gamme de Ø de câble
9.7 mm (max)
- Conforme à la norme RoHS
oui
According to IEC/EN 60332-1-2
Polyvinyl chloride (PVC)
Other
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 2875939 Siemens 6FX50028QN041CA0 M12 mâle 1 pc(s) Piece
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 2875939 Siemens 6FX50028QN041CA0 M12 mâle 1 pc(s) Piece
Description
Single cable prefabricated 4G0.38+2x0.38+4x0.2 C SPEED-CONNECT M12 connector Cores with end sleeve Data cable with IX connector UL/CSA DESINA MOTION-CONNECT 500 Dmax.=9.7 mm, length(m)= One Cable Connection (OCC) MOTION-CONNECT, the simple, fast and safe connection for the SINAMICS S210 servo converter and the SIMOTICS S-1FK2 servo motor. The servo motor and servo converter are simply connected up by only one cable instead of the usual two or three cables. Thanks to this one-cable technology with SPEED-CONNECT quick release lock, the power supply, encoder connection and braking signal are brought together in a single cable. This results in a number of benefits, e.g. the time-saving layingof only one cable and the reduced installation space requirements. Another advantage is that only one cable has to be cleaned, especially in industries where hygiene requirements are high. The cable can be ordered in precise 10 cm lengths and has a motor-side M17 and/or M12 connection plug (smallest OCC connector worldwide). The compact motor with a small, rotatable connector enables simple installation even in confined spaces. The cable has IP20 degree of protection on the converter side and IP65 degree of protection on the motor side. Optimized connection technology via OCC (One Cable Connection)
