Démarreur progressif Siemens 3RW4036-1BB14 3RW40361BB14 Puissance moteur à 400 V 22 kW Puissance moteur à 230 V 11 kW 40
EAN :
N° réf. fabricant :
Code produit :
Fiche technique (PDF)
2 pièce(s)
Nombre
Total (CHF 753.89 / pièce(s))
CHF 753.89
excl. TVA
Livraison gratuite
Plus que 2 pièce(s) en stock !
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Démarreur progressif SIRIUS S2 45 A, 22 kW/400 V, 40 °C AC 200-480 V, AC/DC 110-230 V bornes à visser
- Type de produit
Démarreur progressif
- Puissance moteur à 230 V
11 kW
- Puissance moteur à 400 V
22 kW
- Tension nominale
400 V/AC
- Phases d'activité
2
- Référence fabricant
3RW40361BB14
- Courant nominal
45 A
- Courant nominal - arrondi
45 A
- Type
3RW4036-1BB14
- Dim.
(L x l x H) 165 x 55 x 160 mm
- Largeur
55 mm
- Hauteur
160 mm
- Longueur
165 mm
- Poids
1.31
Single direction
IP00
Other
45 A
11 kW
22 kW
40 °C
VRAI
AC/DC
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 197085 Démarreur progressif Siemens 3RW4036-1BB14 3RW40361BB14 Puissance moteur à 400 V 22 kW Puissance moteur à 230 V 11 kW 40
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 197085 Démarreur progressif Siemens 3RW4036-1BB14 3RW40361BB14 Puissance moteur à 400 V 22 kW Puissance moteur à 230 V 11 kW 40
Description
SIRIUS soft starter S2 45 A, 22 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW40 for standard applications for the soft starting and ramp-down of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

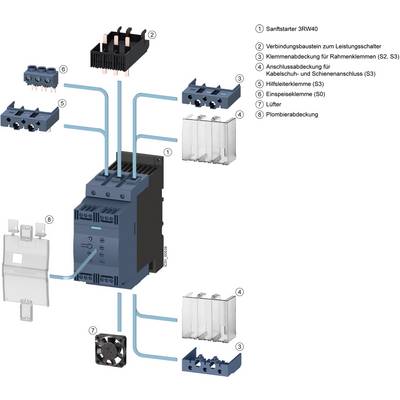

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals. The optional fan permits an even more compact design in the control cabinet.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals. The optional fan permits an even more compact design in the control cabinet.
Simple, efficient and always up to date - SIRIUS modular system.
