Démarreur progressif Siemens 3RW3028-1BB14 3RW30281BB14 Puissance moteur à 400 V 18.5 kW Puissance moteur à 230 V 11 kW
Fiche technique (PDF)
EAN :
N° réf. fabricant :
Code produit :
Nombre
Total (CHF 495.95 / pièce(s))
CHF 495.95
Prix TVA incl.
Livraison gratuite
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Démarreur progressif SIRIUS S0 38 A, 18,5 kW/400 V, 40 °C AC 200-480 V, AC/DC 110-230 V bornes à visser
- Tension moteur
200..480 V
- Type de produit
Démarreur progressif
- Courant de raccordement
38 A
- Puissance moteur à 230 V
11 kW
- Puissance moteur à 400 V
18.5 kW
- Tension nominale
400 V/AC
- Référence fabricant
3RW30281BB14
- Courant nominal
38 A
- Courant nominal - arrondi
38 A
- Type
3RW3028-1BB14
- Puissance moteur à 230 V/400 V
18.5 kW

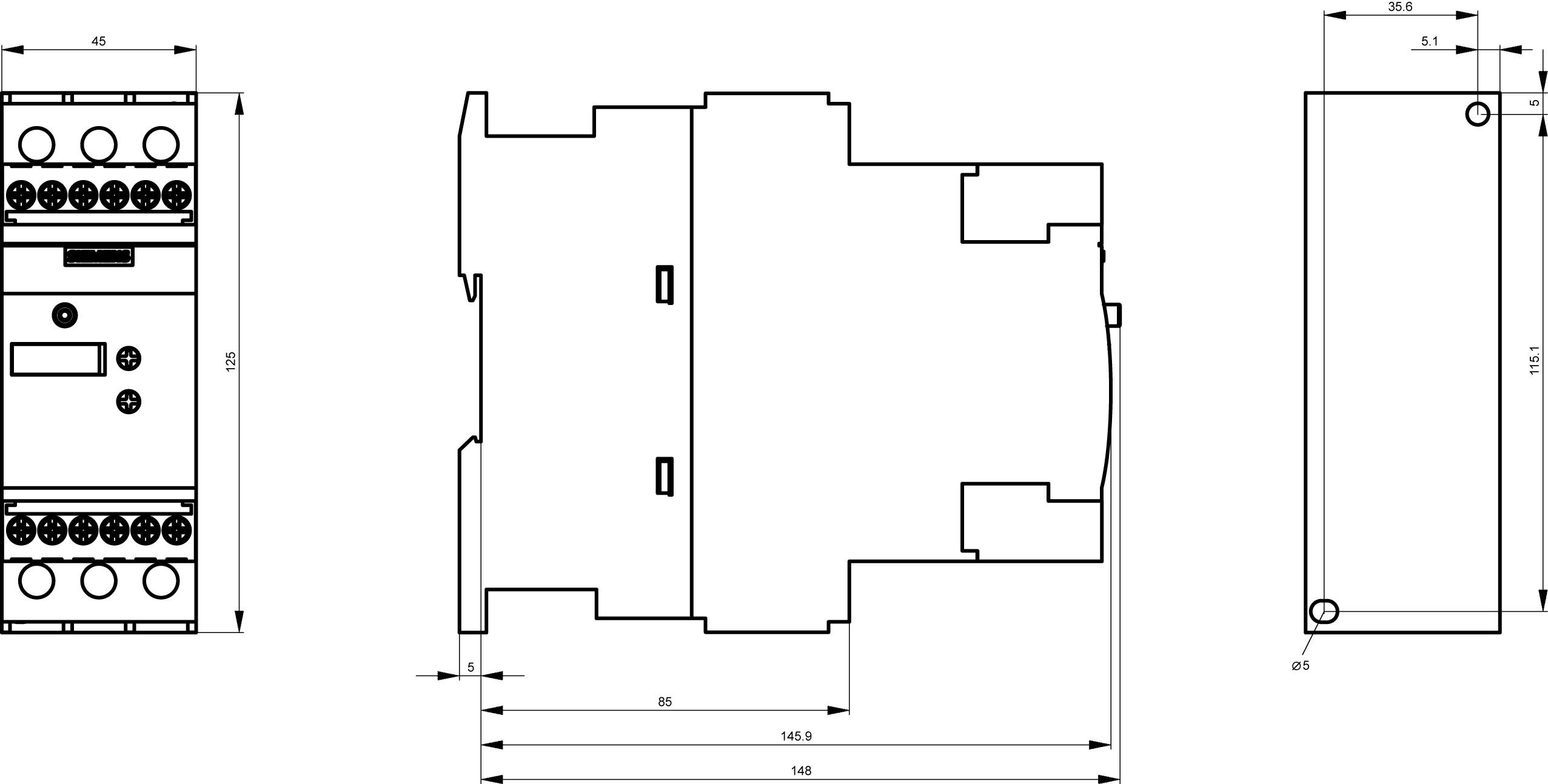

- Dim.
(L x l x H) 150 x 45 x 125 mm
- Connexion
borne à vis
- Largeur
45 mm
- Hauteur
125 mm
- Longueur
150 mm
- Profondeur
150 mm
- Température max.
40 °C
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
38 A
11 kW
18.5 kW
40 °C
FAUX
AC/DC
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 197597 Démarreur progressif Siemens 3RW3028-1BB14 3RW30281BB14 Puissance moteur à 400 V 18.5 kW Puissance moteur à 230 V 11 kW
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 197597 Démarreur progressif Siemens 3RW3028-1BB14 3RW30281BB14 Puissance moteur à 400 V 18.5 kW Puissance moteur à 230 V 11 kW
Description
SIRIUS soft starter S0 38 A, 18.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

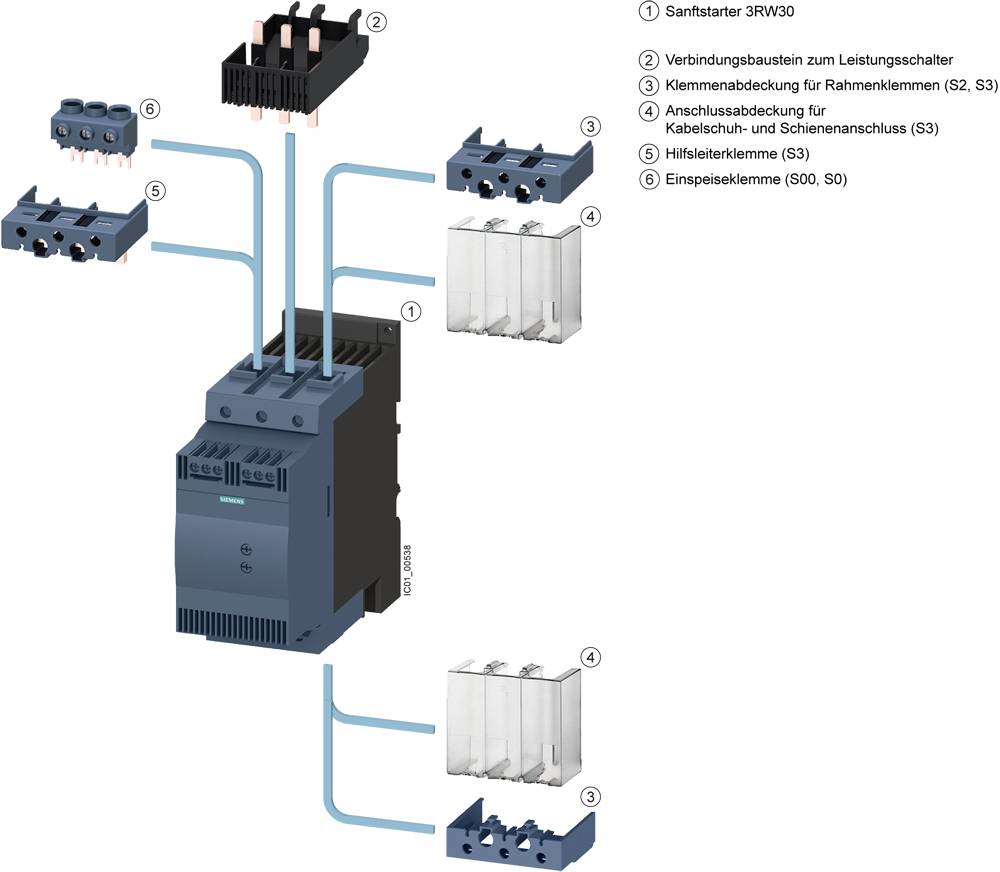

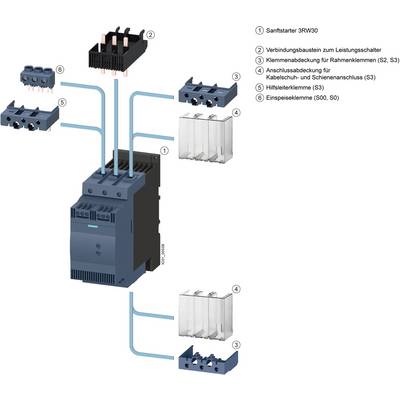

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
