Teledyne LeCroy Oscilloscope Probe Tastkopf 2 GHz
EAN:
Hst.-Teile-Nr.:
Bestell-Nr.:
Datenblatt (PDF)
Anzahl
Gesamt (CHF 5’226.60 / Stück)
CHF 5’226.60
zzgl. MwSt.
Kostenfreier Versand
14 Tage Rückgaberecht inklusive (30 Tage mit)
Highlights & Details
Teledyne LeCroy, Power/Voltage Rail Probe. 2 GHz bandwidth, 1.2x attenuation, +/-60V offset, +/-800mV
- Bandbreite 2 GHz
Technische Daten
- Temperatur, Betrieb: 0 °C bis +50 °C
- Temperatur, Nicht-Betrieb: -40 °C bis +70 °C
- Produkt-Art
Tastkopf
- Bandbreite
2 GHz
- Eingangswiderstand
50 kΩ
Werksstandard (ohne Zertifikat)
Dokumente & Downloads
Datenblatt
Datenblatt 2748918 Teledyne LeCroy Oscilloscope Probe Tastkopf 2 GHz
Bedienungs- und Sicherheitshinweise
Bedienungs- und Sicherheitshinweise 2748918 Teledyne LeCroy Oscilloscope Probe Tastkopf 2 GHz
Beschreibung

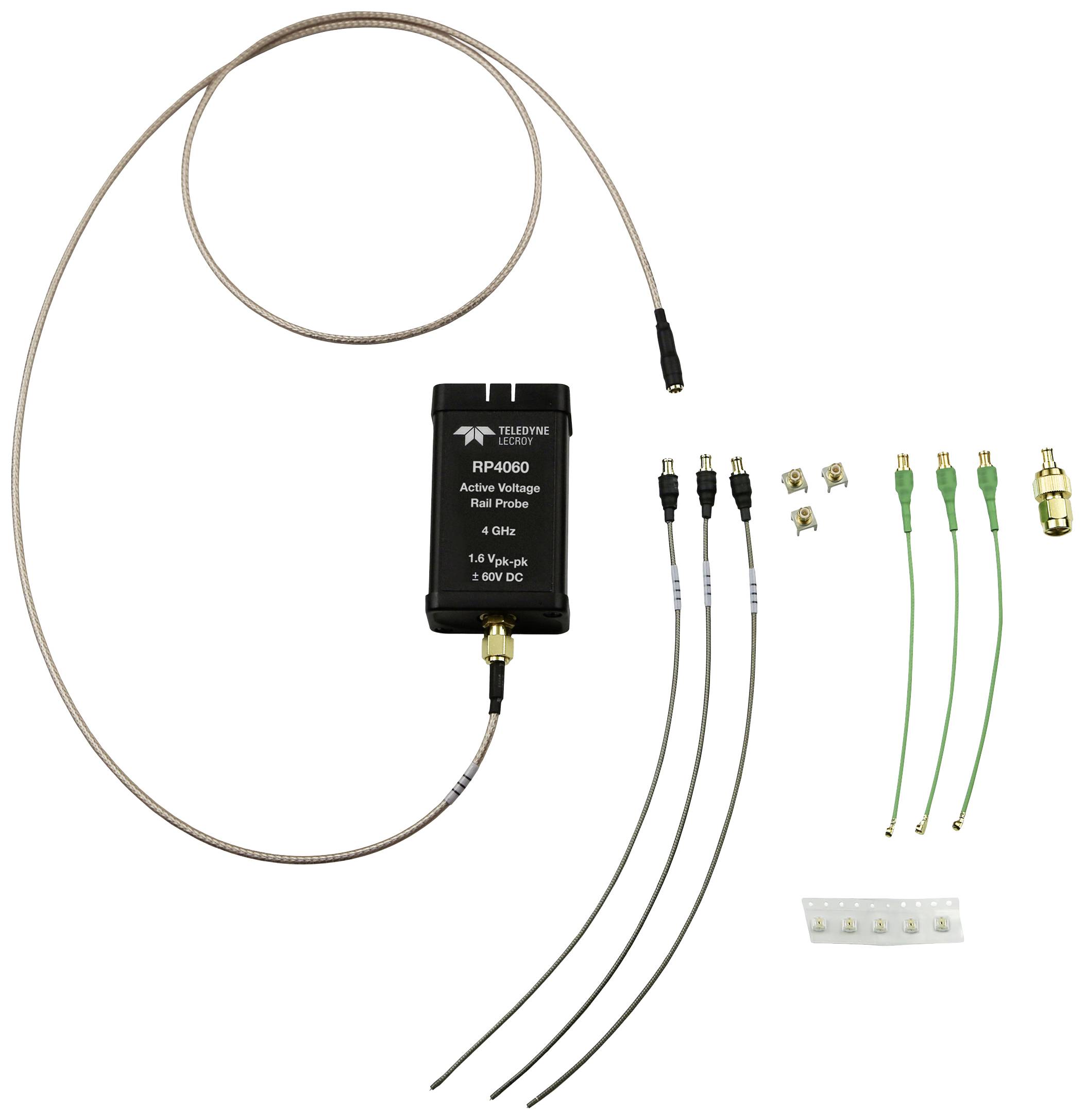

The RP4060 and RP2060 are supplied standard with solder-in and coaxial cables with MCX and U.FL PCB receptacle mounts. Receptacles or leads can be left connected in circuit for easy connection of different signals. A browser tip is optionally available. Voltage rail probes are designed specifically to probe a 50 Ohm DC power/voltage rail. The probe has large built-in offset, low attenuation (noise), and high DC input impedance. Built-in offset and low attenuation permit the power/voltage rail to be offset in the oscilloscope by its mean DC voltage with high oscilloscope gain (sensitivity) to achieve a noise-free view of small signal variations. The high DC input impedance eliminates loading of the DC rail. Includes a complete set of solder-in leads and coaxial cables.
Ausführung
- Permits the DC signal to be displayed in the vertical center of the oscilloscope grid with a high-sensitivity gain setting.
Hinweise
The probe attenuation is a nominal 1.2x coupled to the oscilloscope at DC 50 Ω. This keeps additive noise to a minimum, and makes it exceptionally useful with Teledyne LeCroy’s 12-bit High Definition oscilloscopes for lowest noise at highest sensitivity gain settings
