Démarreur progressif Siemens 3RW3018-1BB14 3RW30181BB14 Puissance moteur à 400 V 7.5 kW Puissance moteur à 230 V 4 kW 40
EAN :
N° réf. fabricant :
Code produit :
Fiche technique (PDF)
2 pièce(s)
Nombre
Total (CHF 290.43 / pièce(s))
CHF 290.43
excl. TVA
Livraison gratuite
Plus que 2 pièce(s) en stock !
Droit de retour de 14 jours inclus (30 jours avec)
Caractéristiques techniques
- Indice de protection : IP20
- Type de produit
Démarreur progressif
- Puissance moteur à 230 V
4 kW
- Puissance moteur à 400 V
7.5 kW
- Alim.
110 - 230 V/AC
- Tension nominale
400 V/AC
- Phases d'activité
1
- Modèle
Raccord à visser
- Référence fabricant
3RW30181BB14
- Courant nominal
17.6 A
- Courant nominal - arrondi
17.6 A
- Type
3RW3018-1BB14
- Dim.
(L x l x H) 150 x 45 x 100 mm
- Largeur
45 mm
- Hauteur
100 mm
- Longueur
150 mm
- Profondeur
150 mm
- Température max.
60 °C
- Température min.
-25 °C
Single direction
IP20
Other
17.6 A
4 kW
7.5 kW
40 °C
FAUX
AC/DC
- UKCA
oui
Documents & téléchargements
Fiche technique
Fiche technique 197559 Démarreur progressif Siemens 3RW3018-1BB14 3RW30181BB14 Puissance moteur à 400 V 7.5 kW Puissance moteur à 230 V 4 kW 40
Conseils d'utilisation et de sécurité
Conseils d'utilisation et de sécurité 197559 Démarreur progressif Siemens 3RW3018-1BB14 3RW30181BB14 Puissance moteur à 400 V 7.5 kW Puissance moteur à 230 V 4 kW 40
Description
SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).

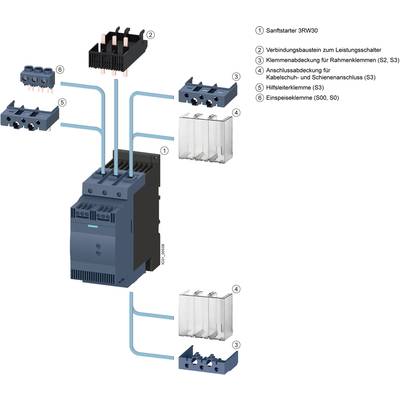

The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
